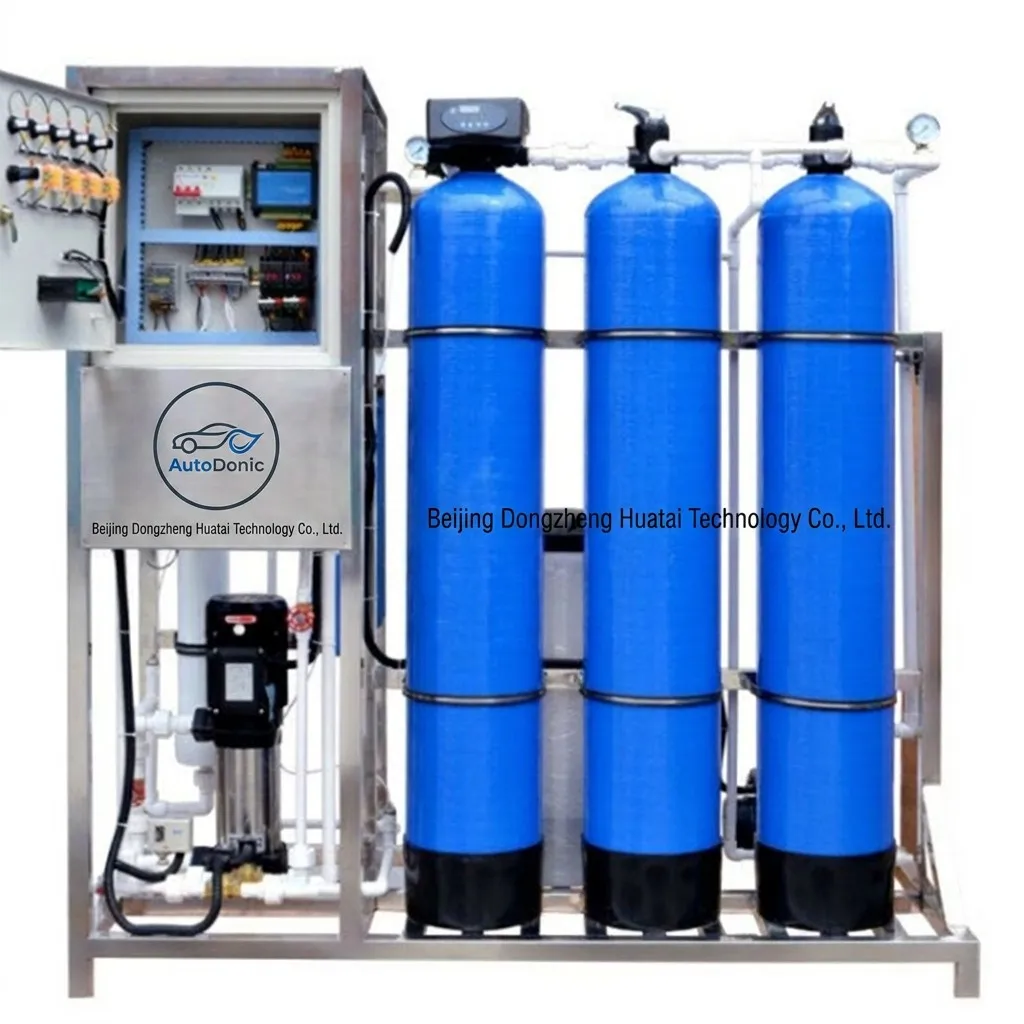

Our 4-ton RO system utilizes advanced semi-permeable membranes to filter out 99% of dissolved solids (TDS), heavy metals, and microorganisms. It is the ultimate solution for ensuring spot-free rinsing in professional car wash applications.
Equipped with intelligent control valves, the system manages water production, membrane flushing, and backwashing cycles automatically. The stainless steel frame ensures long-term durability in high-humidity environments.
| Specifications Item | Technical Details |
|---|---|
| Water Production Capacity | 2 m³/h – 4 m³/h |
| System Working Pressure | 0.6 MPa (Max 1.2 MPa) |
| Rated Flow Rate | 2 m³/h |
| Inlet/Outlet Connection | DN25 (1 inch) |
| Resin Tank Spec | 500mm * 1750mm |
| Salt/Resin Volume | 200 Liters / 200 Liters |
| Control Method | Fully Automatic Logic Control |
| Construction Material | Industrial Stainless Steel / FRP |
| Applicable TDS Range | < 2000 ppm |
Q1: Why is RO water essential for car washing?
A: RO (Reverse Osmosis) water is stripped of minerals that cause hard water spots. Using RO water for the final rinse ensures a spot-free finish without hand-drying.
Q2: How often do I need to replace the membranes?
A: With proper pre-filtration, the RO membranes typically last 12-24 months. Our system includes an auto-flush feature to maximize lifespan.
Q3: Does this system support water recycling?
A: Yes, it can be integrated into a total water recycling system as the final purification stage before reuse or spot-free rinsing.
Q4: Is the installation complicated?
A: The unit comes pre-assembled on a skid. You only need to connect the power (380V), water inlet, and outlet pipes. Detailed manuals are provided.
